316 Stainless Steel Screw Round Head Phillips Drive 3/16 Tapping ANSI Standard

Brand Name : VDL

Model Number : SSPS4820

Certification : ISO

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, T/T, Western Union , Paypal

Supply Ability : 500 , 000 pcs per month

Delivery Time : 30 days

Packaging Details : 5000 pcs per carton in bulk with dimension 20 X 15 X 15 cm , 600 cartons to a 20 ft container

Material : Stainless Steel

Property Class : 304

Diameter : 4.8 mm

Length : 20 mm

Drive : PH

Head : Pan

Point : Sharp

Pitch : 2.12

Contact Now

316 Stainless Steel Screw Round Head Phillips Drive 3/16 Tapping ANSI Standard

316 Stainless steel round head screw with Phillips drive and sharp point , full coarse threads , and widely used to various wooden or metal items .

Material

Material	SS316
Case hardness	720 HV
Core hardness	450HV

Chemical elements

C	Si	Mn	S	P	N	Cr	Ni
0.07	0.06	2	0.025	0.04	0.1	19	10.5

Physical performance

Tensile strength σb (MPa)	535
Yield Strength σs (MPa)	210
Elongation δ5 (%)	50
Reduction of area ψ (%)	65
Density g/cm3)	7.93

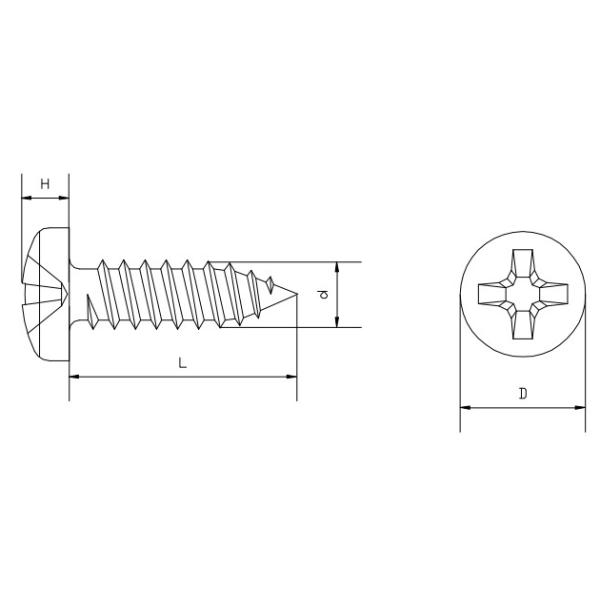

Technical Specification

Thread diameter	4.8
Thread length	20
Head height	3.5
Head width	9.5
Material	Stainless steel
Grade	A4-70
Finishing	Passivated
Tensile strength	535
Hardness	HRC72
Torque Kgf-cm	25
Standard	DIN 7981

Finishing

Finishing	Passived
Standard	RoHS ( 2002/95-EC )
Thickness	4 um
Color	grey

Advantages

◎ Good ductility

◎ Torsional resistance

◎ High tensile strength

◎ Corrosion resistance

◎ Long service

◎ Hard material

Packing

Model No.	size	Qty/box	Weight /box/kg
PHS4820	4.8x20	1000	2.32

Note : we accept customized package .
